Module 500-16/20/25 - A versatile vertical glazing system offering high light transmission and good thermal insulation combined with simple installation.

Ideally suited to external high and low level glazing applications up to c.1200mm - Module 500 can also be utilised for internal back lit feature walls, partitions and displays.

It offers the architect and contractor a range of design advantages:

  • Choice of thicknesses - 16mm, 20mm or 25mm
  • Available in long lengths - sheets manufactured up to 8m if required
  • Good insulation - thermal transmittance (U-value) of 1.67-1.99 W/m2K
  • Filters 99% of harmful UV rays whilst transmitting diffused light
  • Withstands temperature variations between -40°C and +130°C
  • Minimum of system components for quick, simple and secure fixing
  • Choice of clear and opal sheet as standard
  • 10 attractive sheet colours also available to order with min quantity
  • Silver anodized or RAL/BS colour powder coated aluminium perimeter trims
  • Fully recyclable materials with minimal environmental impact
  • B-s1-d0 Euroclass fire rated (equivalent UK Class 0)
  • 40mm thick sheet variants also available

Module 500 is an interlocking multiwall polycarbonate system which uses 16mm, 20mm or 25mm thick interlocking sheets manufactured to length in a standard 500mm panel widths.

The Module 500 system transmits high levels of diffused natural light into any building whilst providing good thermal insulation (U-value: 16mm:1.99W/m2K, 20mm:1.80W/m2K, 25mm:1.67W/m2K).

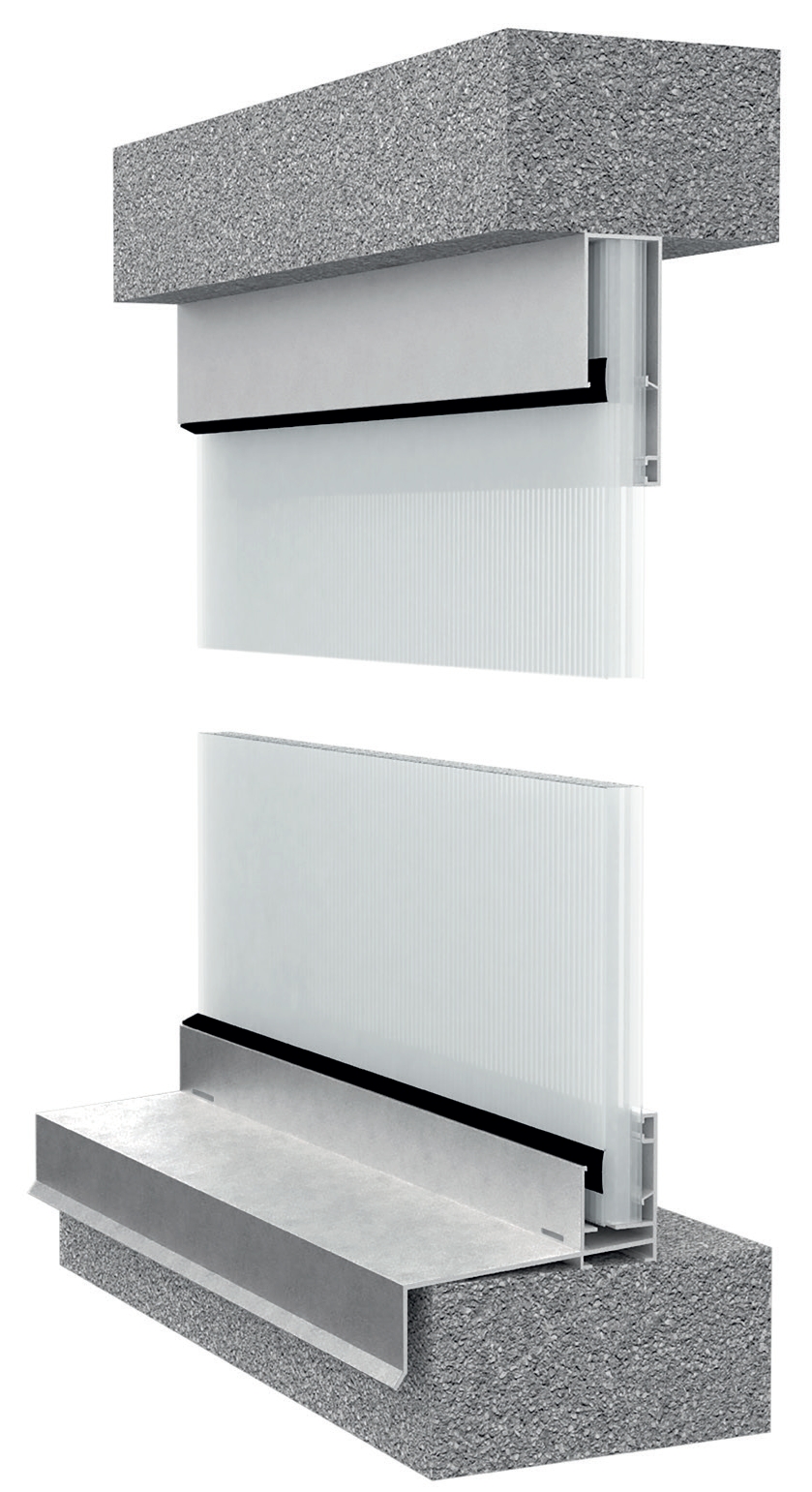

The honeycomb structure sheets are located within durable anodised silver aluminium framing trims at the top and bottom of the glazing.

The flush face finish of the system makes it an appealing choice for use as ribbon glazing, within internal partitions and false ceilings as well as for feature lightwalls.

Module 500 sheets are available in clear and opal finishes as standard. For special orders they can also be supplied in a range of colour tints and the system's aluminium profiles can also be powder coated to any standard RAL or BS colour.

All sheets are manufactured to length and factory sealed - with typical delivery to site made in around 4 weeks from order.

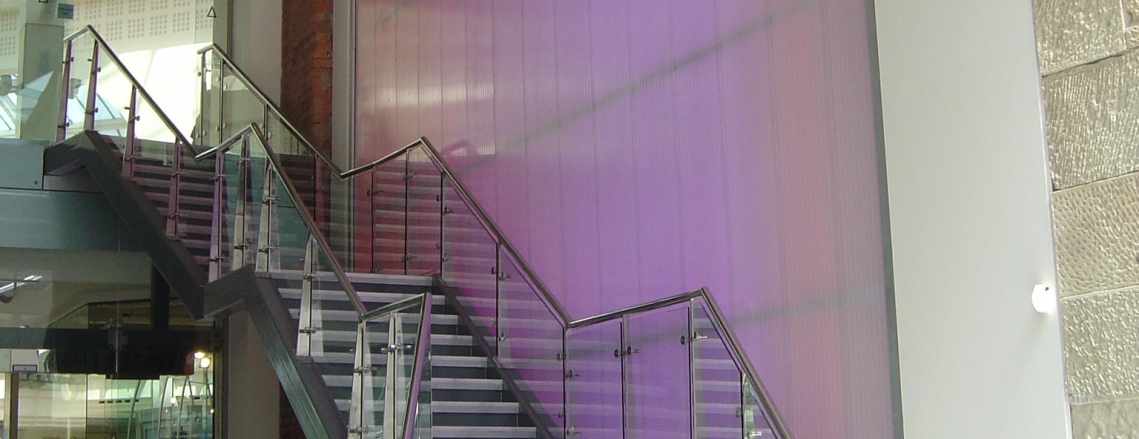

Opal Module 500/16mm utilised as a light-wall at the Triangle shopping Centre in Manchester
